In this article, I am explaining how to populate items in
dropdownlist on the basis of another dropdownlist value. I am also using entity
framework code first model to get the list of countries and its states.
·
Open Visual Studio 2010
·
Create a new ASP.Net MVC 3 or 4 web application and named
it as CascadingDropDown for this application.
·
Choose Razor as the View engine and click OK
·
Add a Controller in your project and give name as HomeController.
·
Create a model class in the Model folder as shown below:
Country:
public class Country
{
public int CountryID { get; set; }
public string Name { get; set; }
public virtual ICollection<State> States { get;
set; }
}
State:
public class State
{
public int StateID { get; set; }
public string Name { get; set; }
public int CountryID { get; set; }
public virtual Country
Country { get; set;
}
}
ModelDbContext:
public class ModelDbContext : DbContext
{
public DbSet<Country>
Countries { get; set;
}
public DbSet<State>
States { get; set;
}
}
Model
In this model class I have created a property CountryID
(hold selected value of country), State (hold selected value of state), Countries
and States (hold list of available country and its states).
public class Model
{
public int? CountryID { get;
set; }
public int? StateID { get; set; }
public IEnumerable<Country>
Countries { get; set;
}
public IEnumerable<State>
States { get; set;
}
}
Add some sample data in database and intialize it when
database has been created:
public class ModelInitializer : DropCreateDatabaseIfModelChanges<ModelDbContext>
{
protected override void Seed(ModelDbContext context)
{
var
countries = new List<Country>
{
new
Country
{
Name = "India"
},
new
Country
{
Name = "USA"
},
new
Country
{
Name = "South
Africa"
},
new
Country
{
Name = "Australlia"
},
};
var
states = new List<State>
{
new
State
{
Name = "Delhi",
Country = countries.Single(m => m.Name == "India")
},
new
State
{
Name = "Mumbai",
Country = countries.Single(m => m.Name == "India")
},
new
State
{
Name = "California",
Country = countries.Single(m => m.Name == "USA")
},
new
State
{
Name = "Newyork",
Country = countries.Single(m => m.Name == "USA")
},
new
State
{
Name = "Capetown",
Country = countries.Single(m => m.Name == "South
Africa")
},
new
State
{
Name = "Bolavia",
Country = countries.Single(m => m.Name == "South
Africa")
},new
State
{
Name = "Sydney",
Country = countries.Single(m => m.Name == "Australlia")
},
new
State
{
Name = "Melbourne",
Country = countries.Single(m => m.Name == "Australlia")
},
};
countries.ForEach(m =>
context.Countries.Add(m));
states.ForEach(m =>
context.States.Add(m));
}
}
Add a connection string in the web.config file under the
configuration tag:
<connectionStrings>
<add name="ModelDbContext" connectionString="Data
Source=.\SQLEXPRESS; Initial Catalog=CountryDb; Integrated Security=true;" providerName="System.Data.SqlClient"/>
</connectionStrings>
Modify the Global.asax file as shown below:
protected void
Application_Start()
{
Database.SetInitializer(new CascadingDropDown.Models.ModelInitializer());
AreaRegistration.RegisterAllAreas();
WebApiConfig.Register(GlobalConfiguration.Configuration);
FilterConfig.RegisterGlobalFilters(GlobalFilters.Filters);
RouteConfig.RegisterRoutes(RouteTable.Routes);
}
Create a HomeController and add the following action
methods. In this controller, Index action return a Model type object to
Index view by holding the list of countries from the database. SelectCountry
action return a list of state on the basis of country id.
ModelDbContext db = new
ModelDbContext();
public ActionResult Index()
{
Model
model = new Model
{
Countries = db.Countries.ToList()
};
return
View(model);
}
[HttpPost]
public virtual ActionResult
SelectCountry(int? countryid)
{
var
states = countryid.HasValue ? db.Countries.FirstOrDefault(m => m.CountryID
== countryid).States : null;
Model
model = new Model
{
CountryID = countryid,
Countries = db.Countries.ToList(),
States = states
};
if
(Request.IsAjaxRequest())
return
PartialView("_States", model);
else
return
View("Index", model);
}
Add an Index View and modify this as given below:
@model CascadingDropDown.Models.Model
@{
Layout = null;
}
<!DOCTYPE html>
<html>
<head>
<meta name="viewport" content="width=device-width" />
<title>Index</title>
<script src="@Url.Content("~/Scripts/jquery-1.7.1.min.js")" type="text/javascript"></script>
<script type="text/javascript">
$(document).ready(function
() {
$('input[type=submit]').hide();
$('#CountryID').change(function () {
$(this).parents('form').submit();
return
false;
});
$("form[action$='SelectCountry']").submit(function () {
$.ajax({
url: $(this).attr('action'),
type: 'post',
data: $(this).serialize(),
success: function (response) {
$('#states').html(response);
}
});
return
false;
});
});
</script>
</head>
<body>
<div>
@using (Html.BeginForm("SelectCountry",
"Home"))
{
<fieldset>
<legend>Countries</legend>
@Html.DropDownListFor(m
=> m.CountryID, new SelectList(Model.Countries,
"CountryID", "Name"), "[Please
select a Country]")
<input type="submit" value="Select" />
</fieldset>
}
</div>
<div id="states">
@Html.Partial("_States", Model)
</div>
</body>
</html>
Add a _States partial view.
@model CascadingDropDown.Models.Model
<fieldset>
@if (Model.States != null
&& Model.States.Count() > 0)
{
<legend>States</legend>
@Html.HiddenFor(m
=> m.CountryID);
@Html.DropDownListFor(m
=> m.StateID, new SelectList(Model.States,
"StateID", "Name"), "[Please
select a state]")
}
else
{
<legend>No states
available</legend>
}
</fieldset>

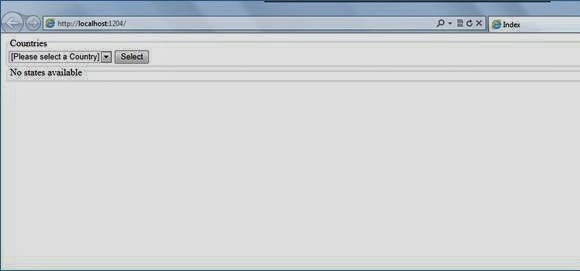

Now run an application. It will something look like below:
When javacsript is turned off a select button will also be
display in the UI in order to populate the states.
When you select the country, it will populate all states in
the state dropdown on the basis of selected country. You can see in the below
screenshot.
Thanks for reading this article. You can enter your valuable
comments and suggestion to improve this article in the comment box.
